Northwoods garage doors
A printed plank face on a ribbed steel section gives Northwoods the look of stained wood without the upkeep.
Northwoods is a single-design line, the Ribbed, and its whole point is the face. Horizontal planks are printed onto a ribbed steel section. The door carries the depth, texture and dimension of stained wood planks with none of the maintenance real wood asks for. The palette holds 5 finishes: Dune, Cedar, Coffee, Aspen Gray and Onyx. It suits contemporary homes, craftsman houses and modern farmhouses alike.
The line comes in 2 insulated builds, both triple-layer. The NW3138 uses polystyrene insulation for an R-value of 6.48 and a U-factor of 0.27. The NW3000 uses a thicker polystyrene layer for an R-value of 9.05 and a U-factor of 0.26. WindPro wind-load reinforcement is available to meet local high-wind codes, and Quiet Door is on the feature list.
Windows keep to the modern side of the catalog. SlimLine inserts, Short Panel and Long Panel glass and the Mosaic window in both formats are offered. A closed section is available for a door with no glass at all.
- Style
- Modern & Glass
- Material
- Steel
- Insulation
- Insulated versions available
- Windows
- Available
- R-value
- 6.48 to 9.05
- Features
- WindPro, Quiet Door, Mosaic Window
- Designs
- 1
- Window styles
- 4
- Colors shown
- 5
- Made by
- Amarr
Preview it on your own homeOpens the manufacturer’s free design tool
Northwoods designs
How it’s built
- Available in triple-layer construction.
- NW3138 - 1-3/8" polystyrene insulation. Insulated door with U-factor of 0.27 and R-value of 6.48.
- NEW - NW3000 - 2" polystyrene insulation. Insulated door with U-factor of 0.26 and R-value of 9.05.
- Available with WindPro wind load reinforcement specifically built to withstand specific high-wind pressures to meet local building codes.
Colors
Dune, Cedar, Coffee, Aspen Gray, Onyx

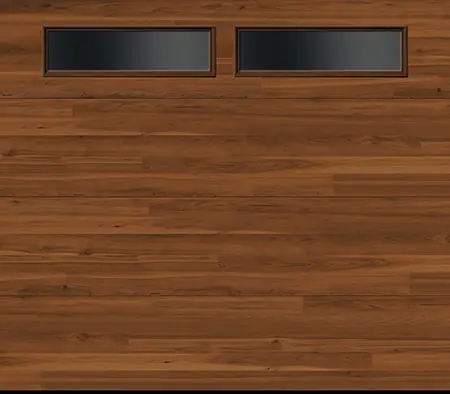

Window options
SlimLine, Short Panel, Long Panel, Mosaic SP, Mosaic LP, Closed

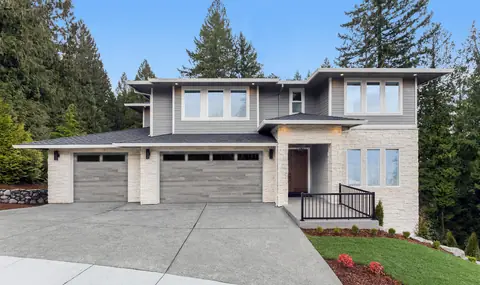

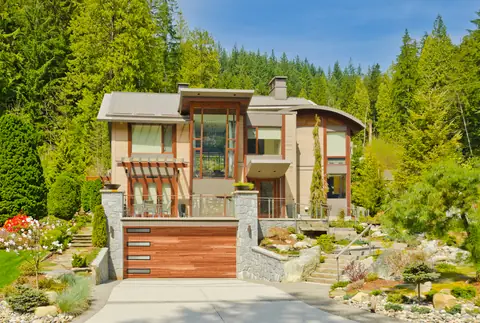

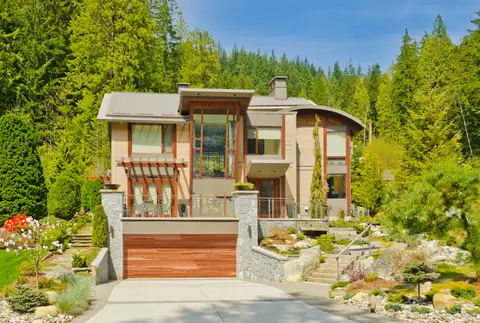

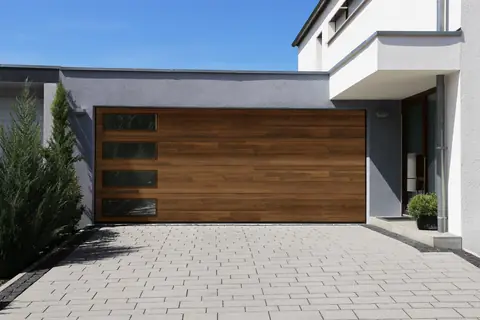

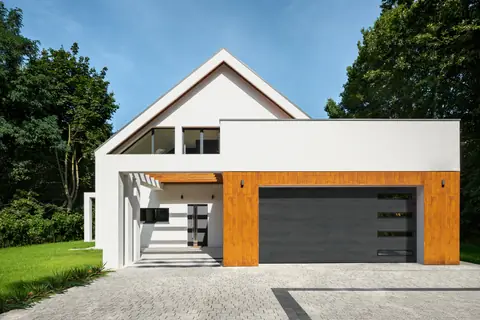

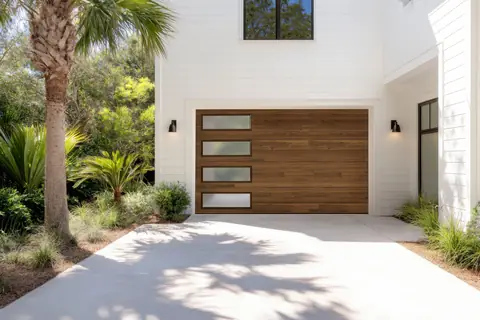

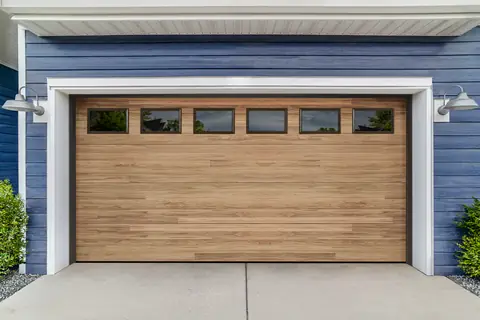

Northwoods on real homes
FAQ
Common questions about the Northwoods
Is the Northwoods insulated?
NW3138 - 1-3/8" polystyrene insulation. Insulated door with U-factor of 0.27 and R-value of 6.48.
Is the Northwoods available wind-load rated?
Available with WindPro wind load reinforcement specifically built to withstand specific high-wind pressures to meet local building codes.
What designs are in the Northwoods collection?
Ribbed.
What colors does the Northwoods come in?
Dune, Cedar, Coffee, Aspen Gray, Onyx.
Ready to see it on your home?
Book a free in-home consultation: we measure, bring samples and quote the door installed.
